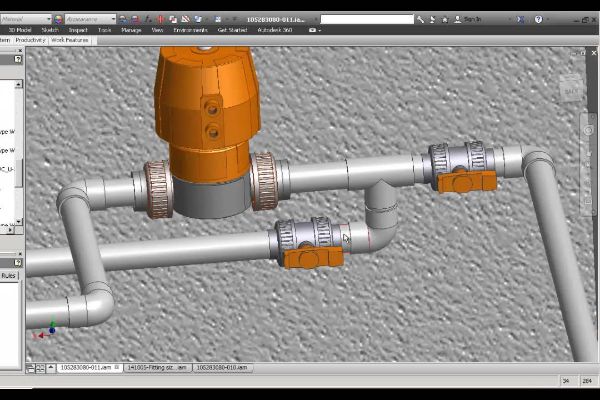

Develop practical skills in Autodesk Inventor’s Tube and Pipe environment. Hands-on exercises cover routed designs using tubing, piping and flexible hose.
Apply rules-based routing to incorporate tube and pipe runs into digital prototypes. Learn how fittings, segment lengths, rounding increments and bend radii support your design standards.
At the end of the course, you will be able to:
- Describe the tube and pipe environment and why you would use it.
- Set up routes and runs and place the initial fittings in your tube and pipe design.
- Create, edit, and manage routes for rigid pipe, rigid tube, and flexible hose designs.
- Manage content libraries, publish custom content to content libraries, and create new styles that use custom content.
- Document tube and pipe designs through the creation of 2D drawings and parts lists and export the 3D design data.
BENEFITS OF Inventor Advanced – Tube & Pipe TRAINING
Efficient Tube and Pipe Design
Accurate System Simulation
Seamless Integration with Existing Models
Enhanced Collaboration
View Course Content
DAY 1
CHAPTER 1: INTRODUCTION TO TUBE AND PIPE
- Introduction to Tube and Pipe
CHAPTER 2: SETUP FOR ROUTES AND RUNS
- Setup for Routes and Runs
- Placing Initial Fittings
CHAPTER 3: ROUTES AND RUNS
- Creating Rigid Routes
- Sketching Rigid Routes
- Editing Rigid Routes
- Working with Fittings in Rigid Routes
- Flexible Hose Routes
- Leveraging Routes and Runs
DAY 2
CHAPTER 4: FITTINGS AND COMPONENTS
- Managing Libraries
- Creating Library Content
- Managing Library Content
- Creating Tubes and Pipe Styles
CHAPTER 5: DOCUMENTING TUBE AND PIPE ASSEMBLIES
- Representing Tube and Pipe Designs
- Documenting Routes and Runs
- Exporting Tube and Pipe Design Data
